The overall structure of the cylinder is compact, excellent quality, strong thrust and pull, and durable. The product adopts hard oxidized aluminum alloy cylinder body, chrome-plated piston rod, high-quality seals and O-rings, thickened end caps. Various kinds of accessories can be added to adapt to various complex installation environments.
MODELS:SC
BORE:32、40、50、63、80、100、125、160、200
STROKE:25-1000+
Model：BC2000/Black
Fluid：Air
Port size：1/4”
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：BF2000+BR2000+BL2000
Model：AC2000/Black/Fiber Copper
Fluid：Air
Port size：1/4
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AF2000+AR2000+AL2000

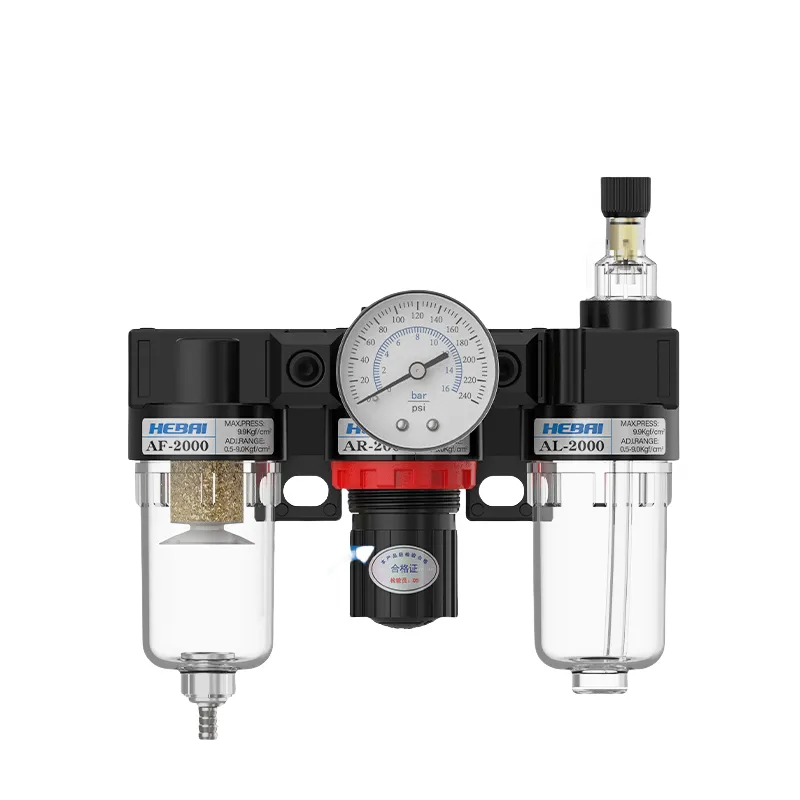

Model：AC2000/Black/Copper Core
Fluid：Air
Port size：1/4
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AF2000+AR2000+AL2000

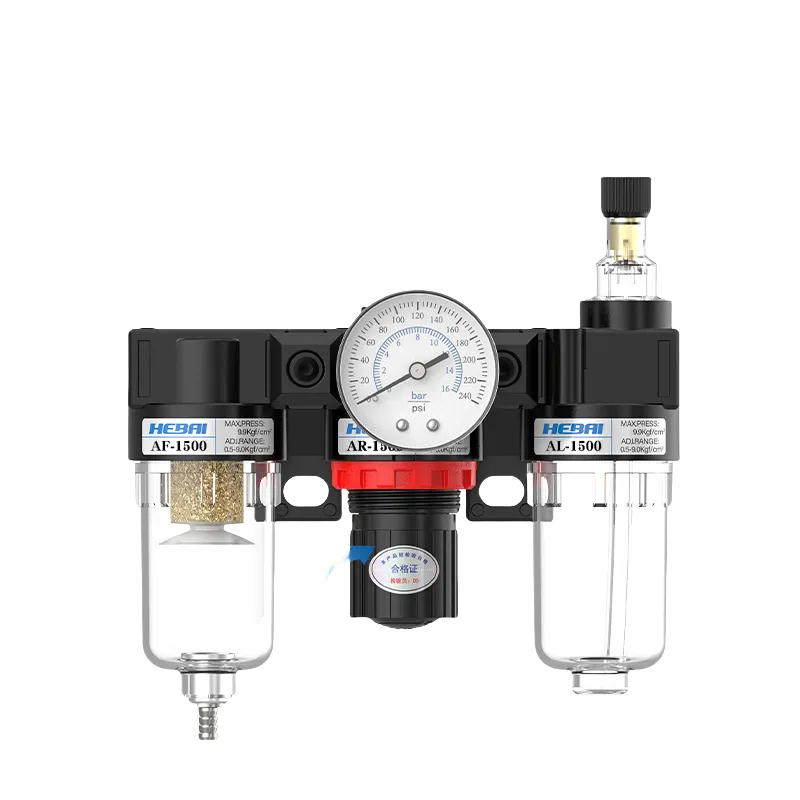

Model：AC1500/Black
Fluid:Air
Port size:1/4
Filtering grade:40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC

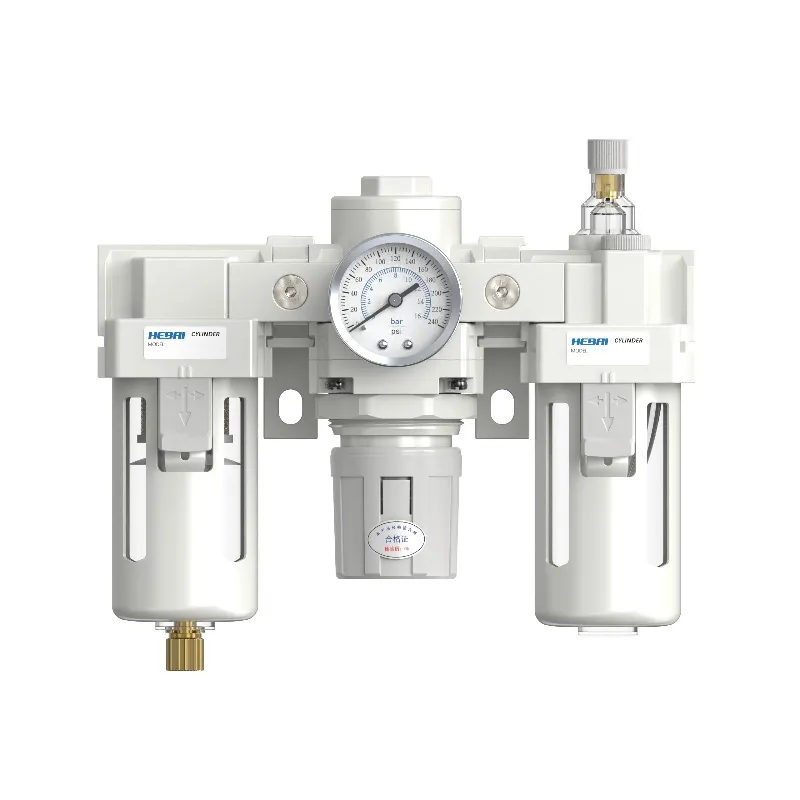

Model:AC3000-03/White
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
Nominal filtration rating:25μm
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AC2010 (None) AC3010~5010 (Included)
Set pressure range:AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction:Overflow type
Model：AC2000-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material：Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type

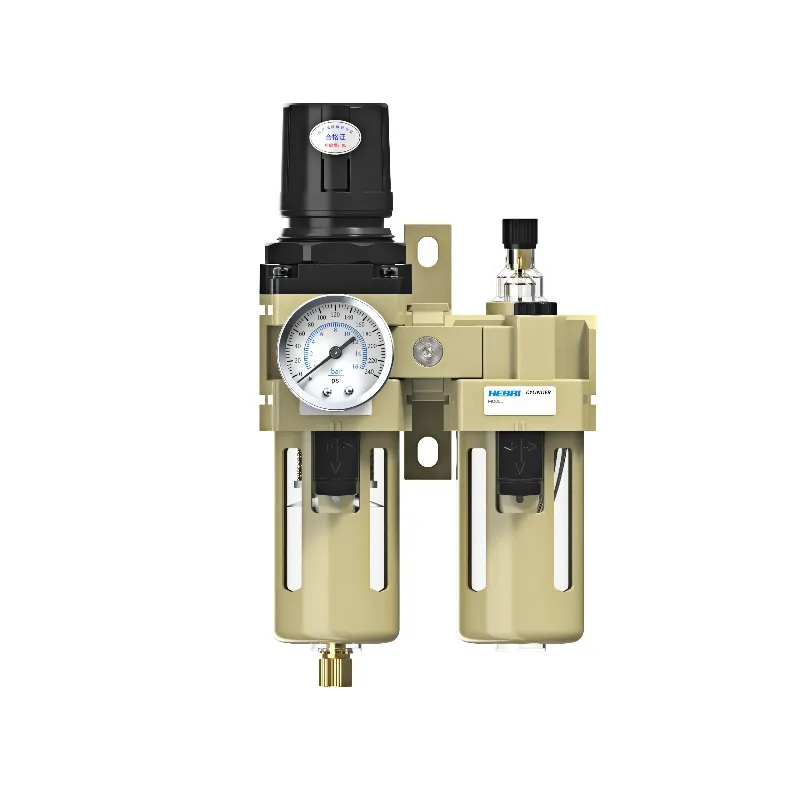

Model:AC3010-03/Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
Nominal filtration rating:25μm
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material:Polycarbonate
Bowl guard:AC2010 (None) AC3010~5010 (Included)
Set pressure range:AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction:Overflow type
Model：AC2010-02/Gold
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material： Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model：BFC2000/Grey/Metal
Fluid：Air
Port size：1/4”
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Constitute：BFR2000+BL2000
Model：AFC2000/Grey/Copper
Fluid：Air
Port size：1/4°
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AFR2000＋AL2000
Model：BFC2000/Black/Plastic
Fluid：Air
Port size：1/4”
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Model:AFC2000/Black/Fiber
Fluid:Air
Port size:1/4°
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model:AFC2000/Black/Copper
Fluid:Air
Port size:1/4°
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model:AFC1500/Black
Fluid:Air
Port size:1/4°
Filtering grade:40μm or25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model：SFC200/300/400
Port size：1/4”/3/8”/1/2″
Working medium:Air
Proof pressure:1.5Mpa(15.3kgf/cm²)
Max.adjustable pressure:1.0Mpa(10.2kgf/cm’)
Using temperature range:5-60℃
Fiter spool precision:40μm
Body material:Aluminum alloy
Cup material:PC
Cup hood:Plastic

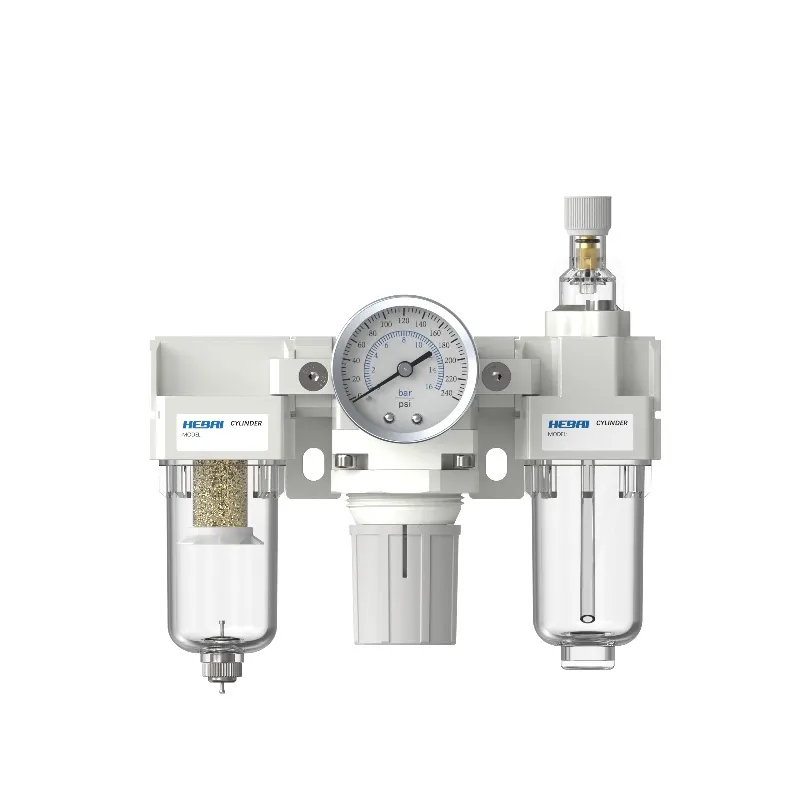

Model：AC3010-03/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material： Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model：AC2010-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material：Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model:AF2000-02/Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Nominal filtration rating:25μm
Bowl material:Polycarbonate
Bowl guard: AF2000 (None) AF3000-5000 (Included)
Model:AF2000/Grey
Fluid：Air
Port size：1/4″
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Model：BF2000
Fluid：Air
Port size：1/4”
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Model:AF2000/Black
Fluid: Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Model：AF3000-03 / White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm²)
Ambient and fluid temperature：5~60℃
Nominal filtration rating：25μm
Bowl material：Polycarbonate
Bowl guard：AF2000 (None) AF3000-5000 (Included)
Model:AF2000-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm²)
Ambient and fluid temperature：5~60℃
Nominal filtration rating：25μm
Bowl material：Polycarbonate
Bowl guard：AF2000 (None) AF3000-5000 (Included)
Model:AR2000-02 / Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Ambient and fluid temperature: 5~60℃
Construction:Relieving type
Model：BR2000 / Grey
Fluid：Air
Port size：1/4”
Pressure range：0.05~0.9MPa(7~130Psi)
Max.pressure： 1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model：AR2000 / Grey
Fluid： Air
Port size： 1/4”
Pressure range： 0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model：BR2000/Black
Fluid：Air
size：1/4”
Pressure range：0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model:AR1500
Fluid: Air
Port size:1/8°
Pressure range: 0.05~0.9MPa(7~130Psi)
Max.pressure: 1.0MPa(145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range:-20~70’℃
Model:AR2000/White
Fluid:Air
Port size: 1/4”
Pressure range:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range: -20~70’℃
Weight:200g
Model:AR2000-02/White
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Ambient and fluid temperature: 5~60℃
Construction:Relieving type
Model：AL3000-03 / Golden
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:AL2000-02/Gold
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
It is recommended to use oil: Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model：AL2000 / Grey
Fluid：Air
Port size：1/4”
Pressure range：0.05~1.0MPa(7~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Model：BL2000
Fluid：Air
Port size：1/4”
Pressure range：0.05~1.0MPa(7~145Psi)
Proof pressure： 1.5MPa(215Psi)
Temperature range： -5~70℃(unfreeze)
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Model: AL2000/ Black
Fluid: Air
Port size: 1/4”
Pressure range: 0.05~1.0MPa(7~145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range: -5~70℃(unfreeze)
Capacity of oil bowl: 25CC
Recommended lubricant: Turbine 1 oil ISOVG32
Model:AL3000-03/ White
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil: Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:SL-200/SL-300/SL-400
Port size: 1/4″/ 3/8″ / 1/2″
Working medium: Air
Proof pressure: 1.5Mpa(15.3kgf/cm)
Max.adjustable pressure:1.0Mpa(10.2kgf/cm)
Using temperaturerange: 5~60℃
Suggest lubrication oil:(ISOVG32) Turbine 1 oil
Body material:Aluminum alloy
Cup material: PC
Model: AL2000-02
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:AW3000-03
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Filter accuracy:25μm
Bowl material:Polycarbonate
Bowl guard: A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)
Set pressure range: Set pressure range
Construction:Overflow type
Model：BFR-2000
Fluid：Air
Port size：1/4″
Filtering grade：40μm or 25μm
Pressure range： Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfrooze)
Model:AFR2000
Fluid:Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure: 1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfrooze)
Model:BFR-2000
Fluid:Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure:1.0MPa(145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range: -5~70℃(unfrooze)
Model: AFR-2000
Fluid: Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure: 1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range: -5~70℃(unfrooze)
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Filter accuracy:25μm
Bowl material:Polycarbonate
Bowl guard:A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)
Set pressure range:AW2000~5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Construction:Overflow type
Model：AFR2000
Fluid：Air
Port size：1/8″
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfrooze)
Model:SFR-200/SFR-300/SFR-400
Port size: 1/4″ / 3/8″ / 1/2″
Working medium: Air
Proof pressure: 1.5Mpa{15.3kgf/cm²}
Max. adjustable pressure: 1.0Mpa(10.2kgf/ cm’}
Using temperature range: 5-60℃
Fiter spool precision: 40μm
Body material: Aluminum alloy
Cup material: PC
MODELS:2W-025-08、2W-040-10、2W-160-15、2W-200-20、2W-250-25、2W-320-32、2W-400-40、2W-500-50
SIZES:DN08、DN10、DN15、DN20、DN25、DN32、DN40、DN50、
VOLTAGES：AC220V、、DC12V、DC24V
*We respect your confidentiality and all information are protected.
*We respect your confidentiality and all information are protected.
*We respect your confidentiality and all information are protected.
Copyright © 2023, Omch All rights Reserved.
*We respect your confidentiality and all information are protected.
English
Spanish
French
Russian
