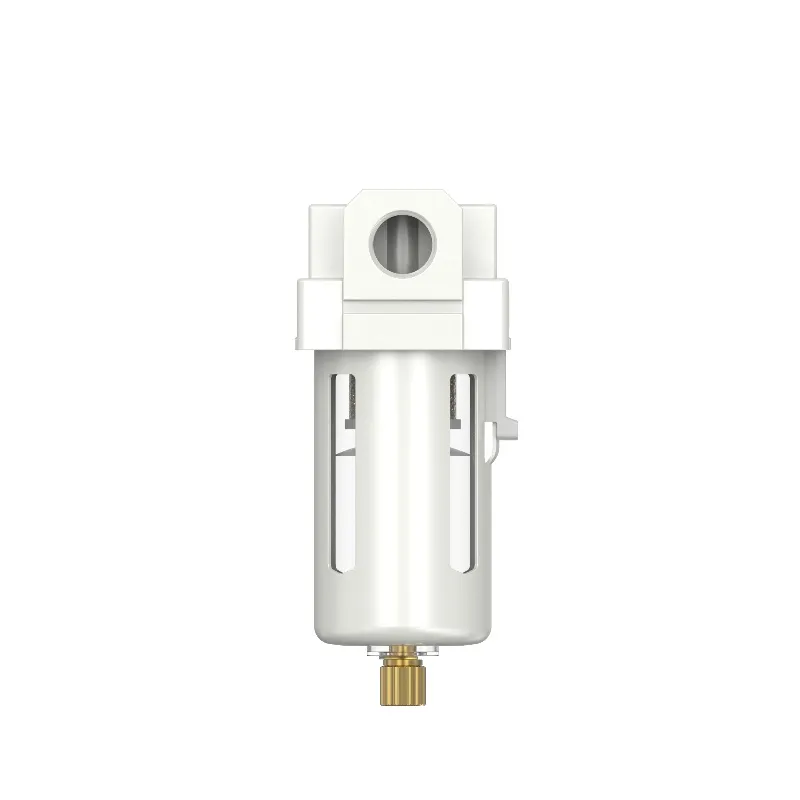

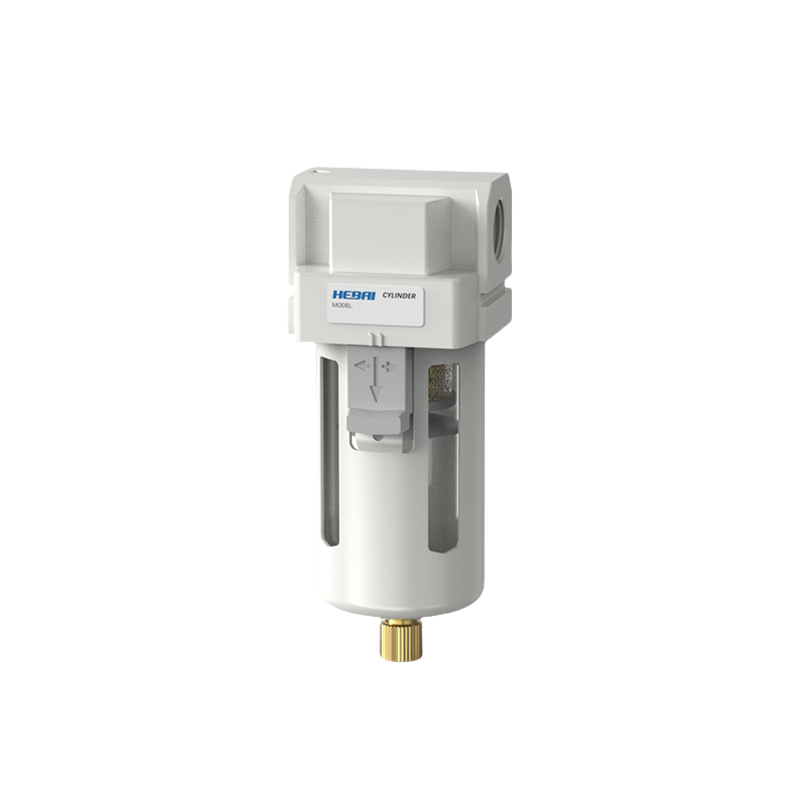

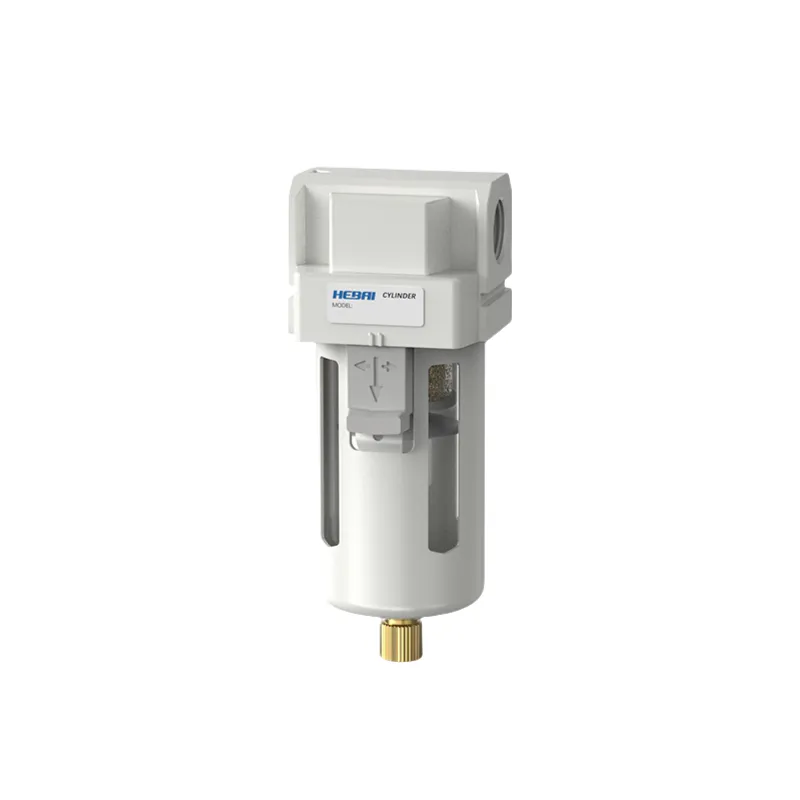

AF3000-03

AF3000-03 / White

Description

Model：AF3000-03 / White

Proof pressure：1.5MPa(15kgf/cm²)

Max. operation pressure：1.0MPa(10kgf/cm²)

Ambient and fluid temperature：5~60℃

Nominal filtration rating：25μm

Bowl material：Polycarbonate

Bowl guard：AF2000 (None) AF3000-5000 (Included)

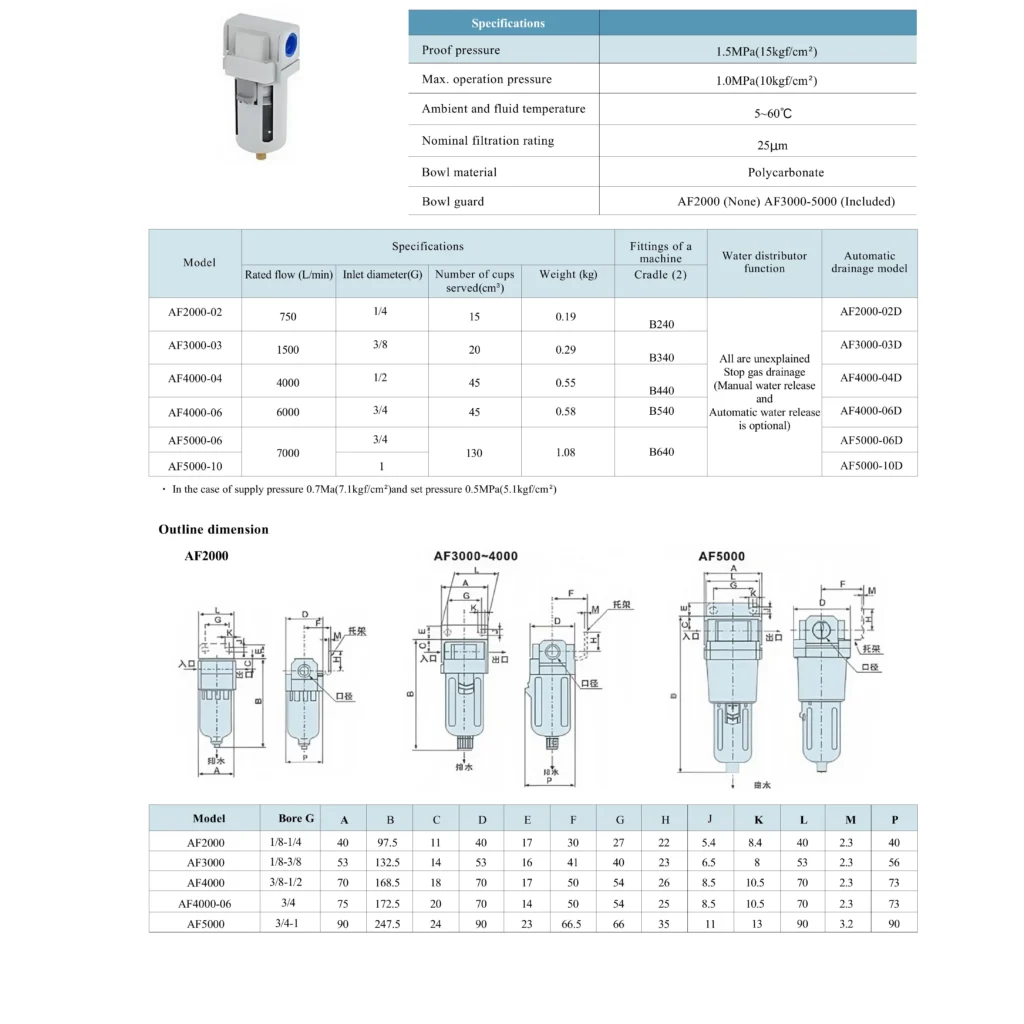

Product Specification

Specifications
Proof pressure	1.5MPa(15kgf/cm²)
Max. operation pressure	1.0MPa(10kgf/cm²)
Ambient and fluid temperature	5~60℃
Nominal filtration rating	25μm
Bowl material	Polycarbonate
Bowl guard	AF2000 (None) AF3000-5000 (Included)

AF2000/Black

Model:AF2000/Black

Fluid: Air

Port size: 1/4″

Filtering grade: 40μm or 25μm

Pressure range: Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)

Proof pressure: 1.5MPa(215Psi)

Temperature range:-5~70℃(unfreeze)

Capacity of drain bowl:15CC

AF3000-03 / White

Model：AF3000-03 / White

Proof pressure：1.5MPa(15kgf/cm²)

Max. operation pressure：1.0MPa(10kgf/cm²)

Ambient and fluid temperature：5~60℃

Nominal filtration rating：25μm

Bowl material：Polycarbonate

Bowl guard：AF2000 (None) AF3000-5000 (Included)

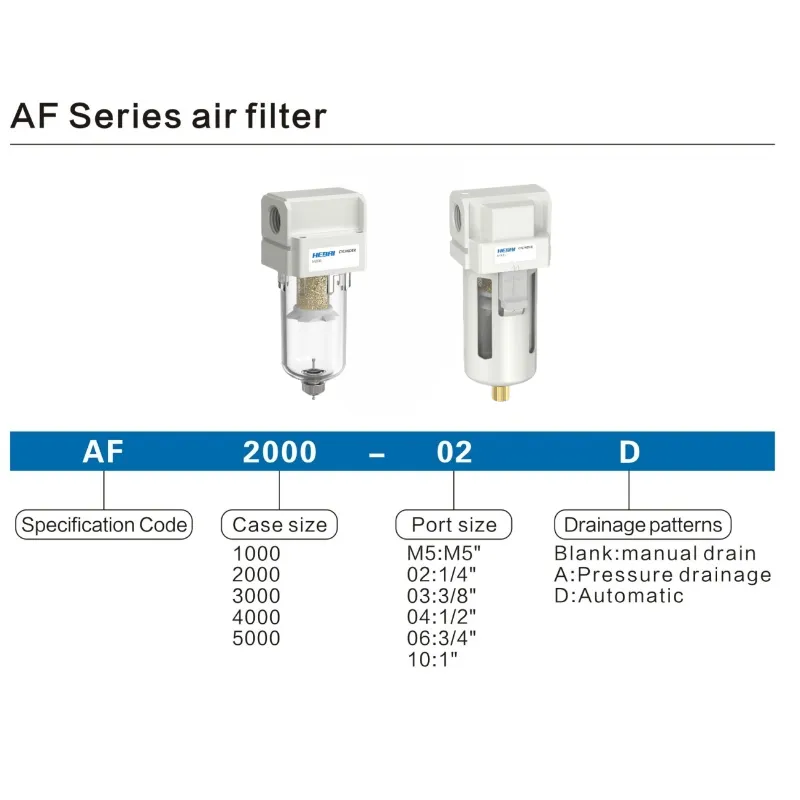

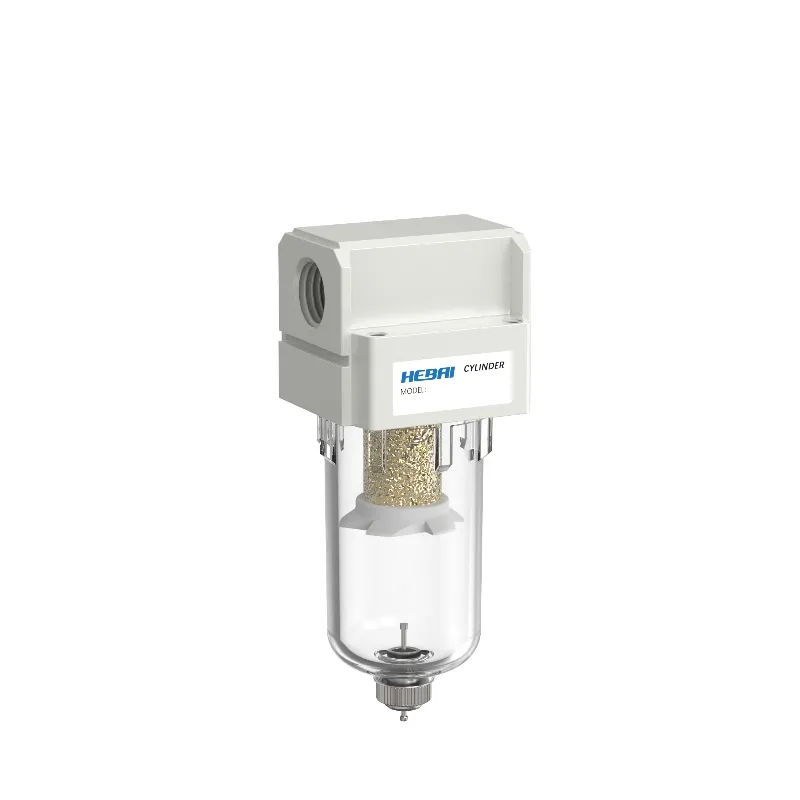

AF2000-02/White

Model:AF2000-02/White

Proof pressure：1.5MPa(15kgf/cm²)

Max. operation pressure：1.0MPa(10kgf/cm²)

Ambient and fluid temperature：5~60℃

Nominal filtration rating：25μm

Bowl material：Polycarbonate

Bowl guard：AF2000 (None) AF3000-5000 (Included)

AR2000-02 / Gold

Model:AR2000-02 / Gold

Proof pressure:1.5MPa(15kgf/cm²)

Max. operation pressure:1.0MPa(10kgf/cm²)

Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)

Ambient and fluid temperature: 5~60℃

Construction:Relieving type

BR2000 / Grey

Model：BR2000 / Grey

Fluid：Air

Port size：1/4”

Pressure range：0.05~0.9MPa(7~130Psi)

Max.pressure： 1.0MPa(145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-20~70’℃

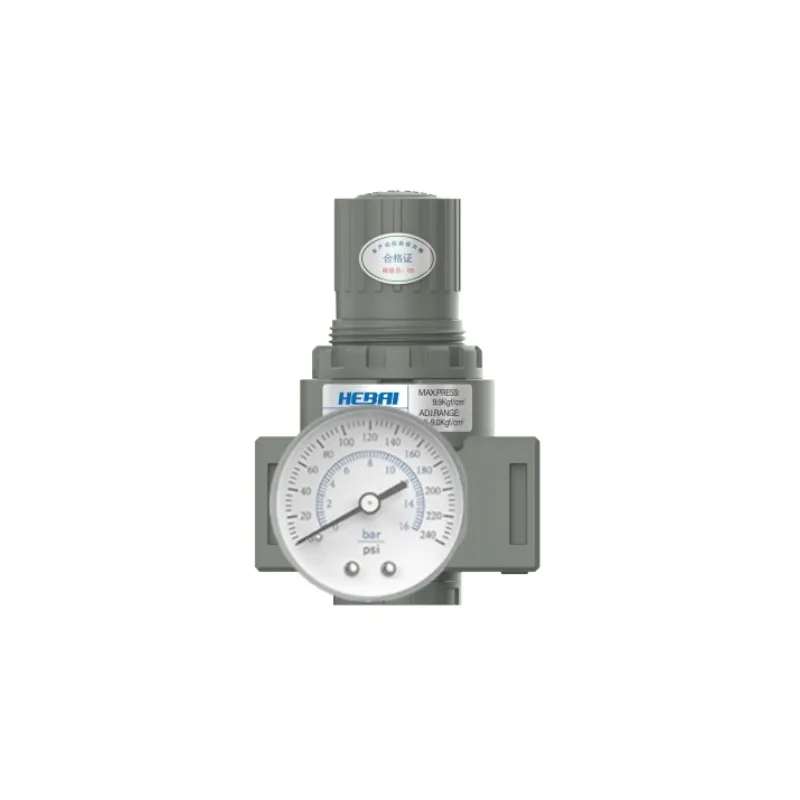

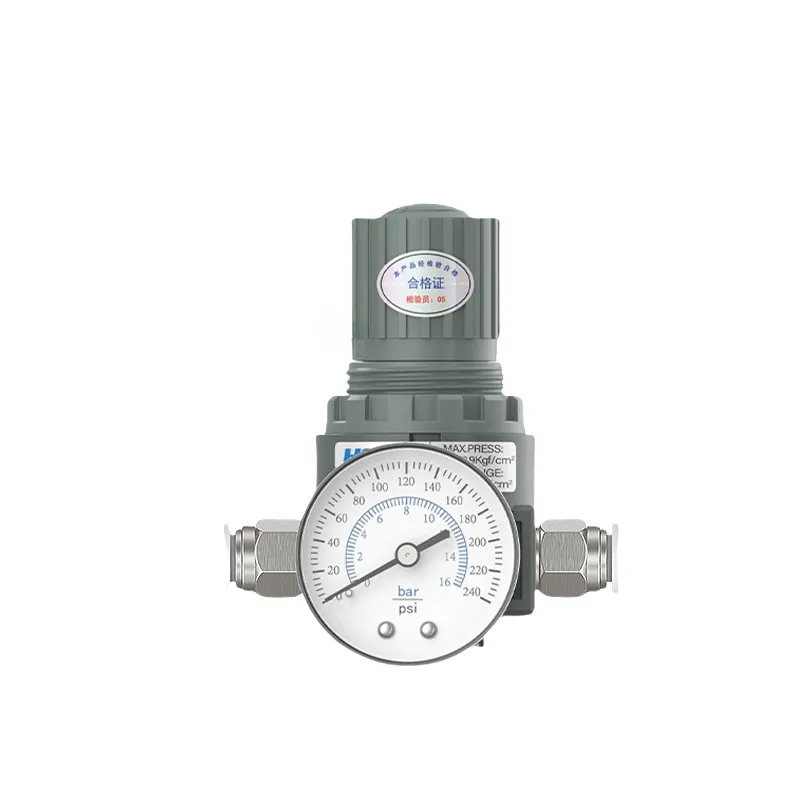

AR2000 / Grey

Model：AR2000 / Grey

Fluid： Air

Port size： 1/4”

Pressure range： 0.05~0.9MPa(7~130Psi)

Max.pressure：1.0MPa(145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-20~70’℃

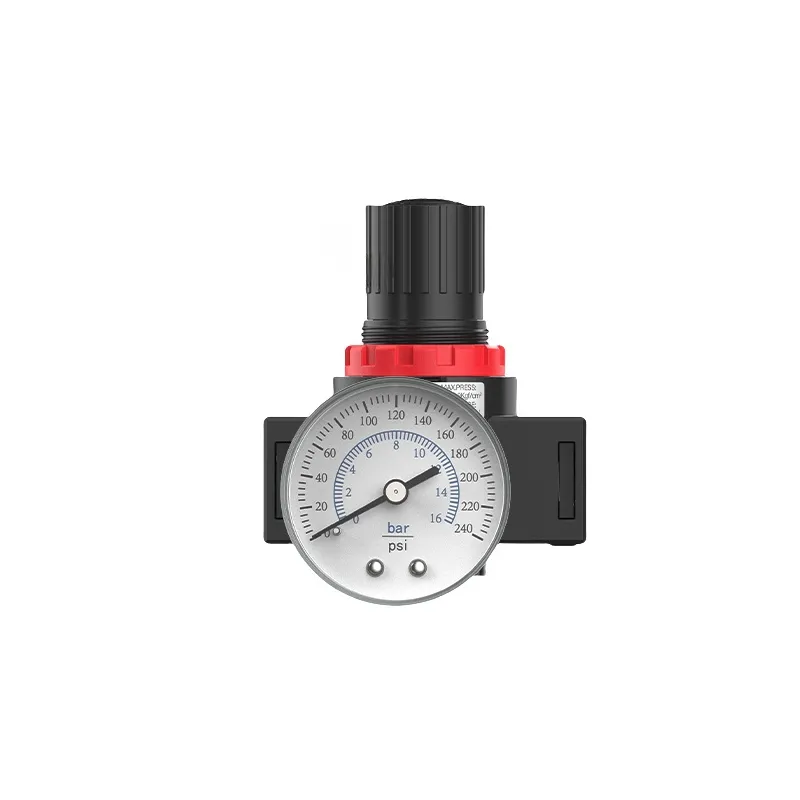

BR2000/Black

Model：BR2000/Black

Fluid：Air

size：1/4”

Pressure range：0.05~0.9MPa(7~130Psi)

Max.pressure：1.0MPa(145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-20~70’℃

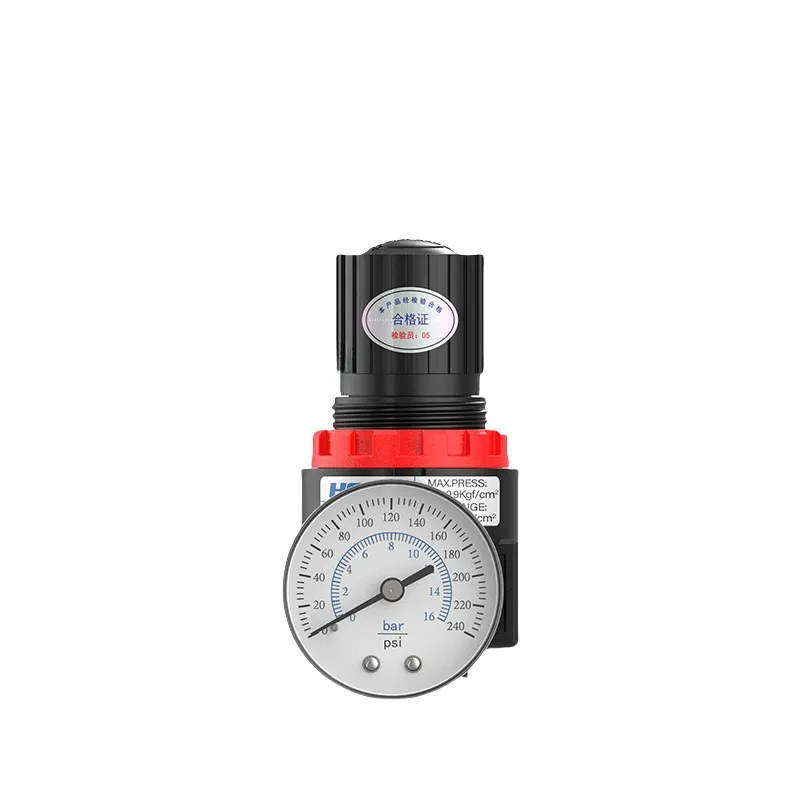

AR1500/Black

Model:AR1500

Fluid: Air

Port size:1/8°

Pressure range: 0.05~0.9MPa(7~130Psi)

Max.pressure: 1.0MPa(145Psi)

Proof pressure: 1.5MPa(215Psi)

Temperature range:-20~70’℃

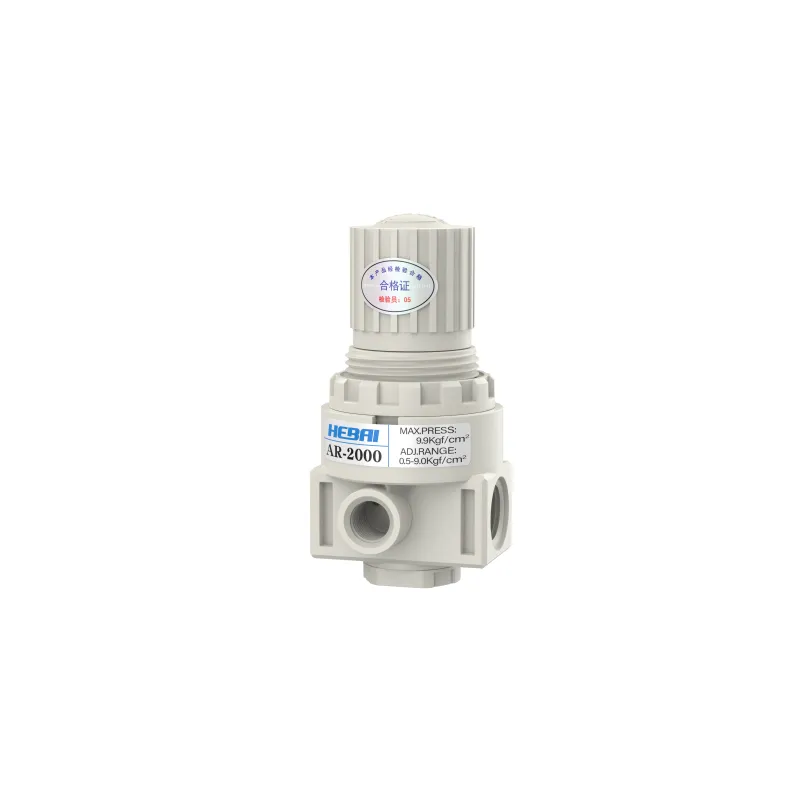

AR2000/White

Model:AR2000/White

Fluid:Air

Port size: 1/4”

Pressure range:0.05~0.9MPa(7~130Psi)

Max.pressure:1.0MPa(145Psi)

Proof pressure:1.5MPa(215Psi)

Temperature range: -20~70’℃

Weight:200g

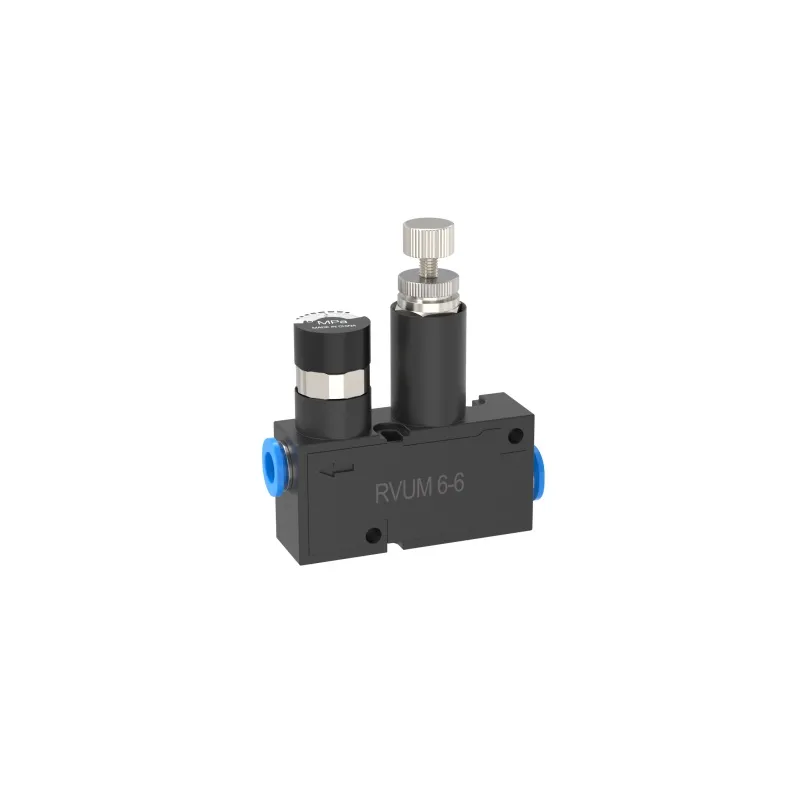

RVUN6-6

AR2000-02/White

Model:AR2000-02/White

Proof pressure:1.5MPa(15kgf/cm²)

Max. operation pressure:1.0MPa(10kgf/cm²)

Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)

Ambient and fluid temperature: 5~60℃

Construction:Relieving type

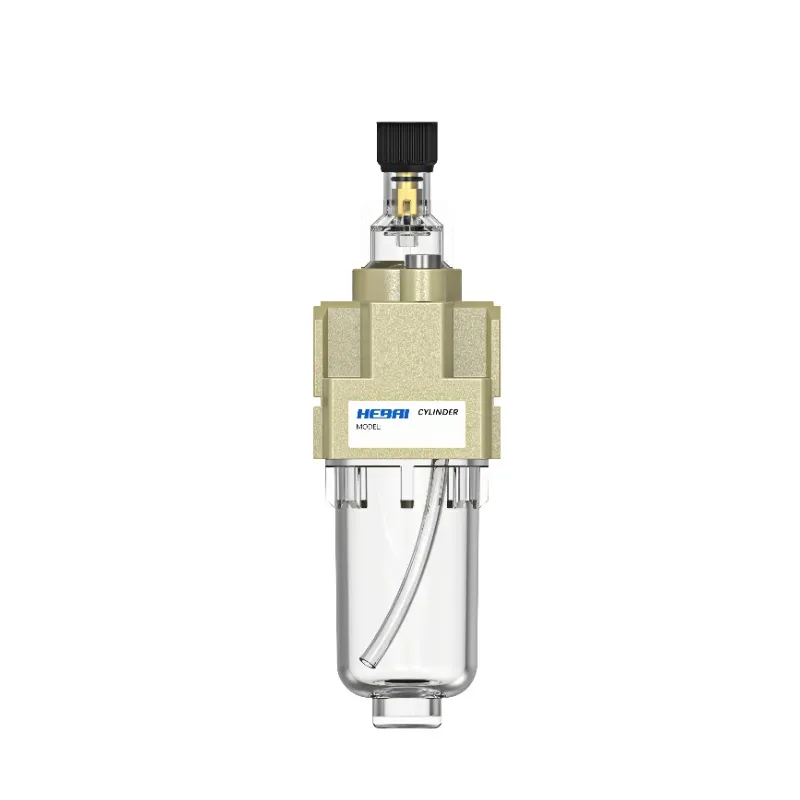

AL3000-03 / Golden

Model：AL3000-03 / Golden

Proof pressure: 1.5MPa(15kgf/cm²)

Max. operation pressure: 1.0MPa(10kgf/cm)

Ambient and fluid temperature: 5-60℃

It is recommended to use oil:Turbine 1 oil ISOVG32

Bowl material: Polycarbonate

Bowl guard:AL2000 (None) AL3000-5000 (Included)

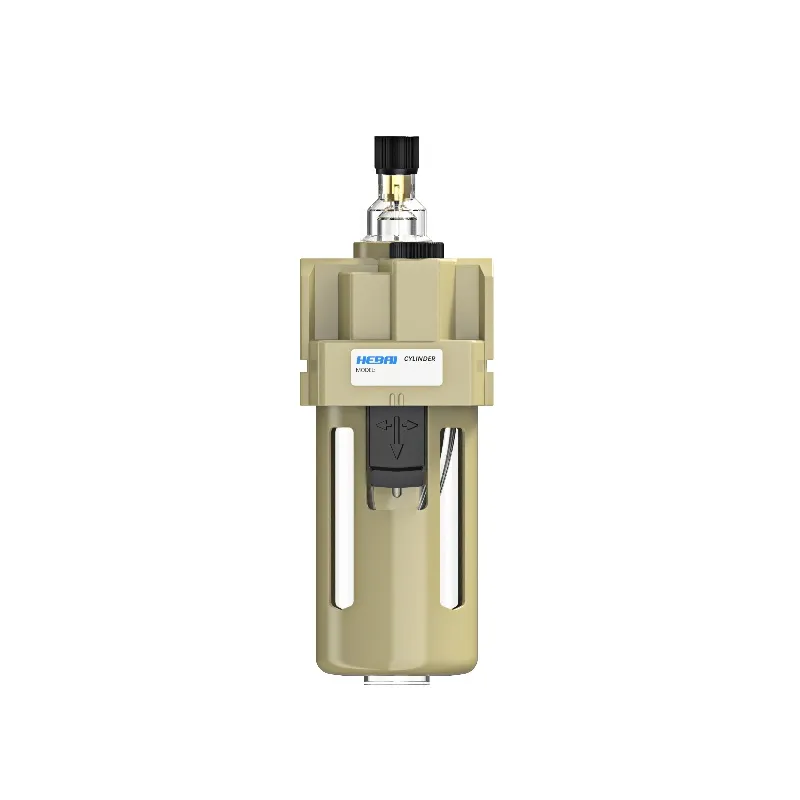

AL2000-02/Gold

Model:AL2000-02/Gold

Proof pressure: 1.5MPa(15kgf/cm²)

Max. operation pressure:1.0MPa(10kgf/cm)

Ambient and fluid temperature:5-60℃

It is recommended to use oil: Turbine 1 oil ISOVG32

Bowl material: Polycarbonate

Bowl guard:AL2000 (None) AL3000-5000 (Included)

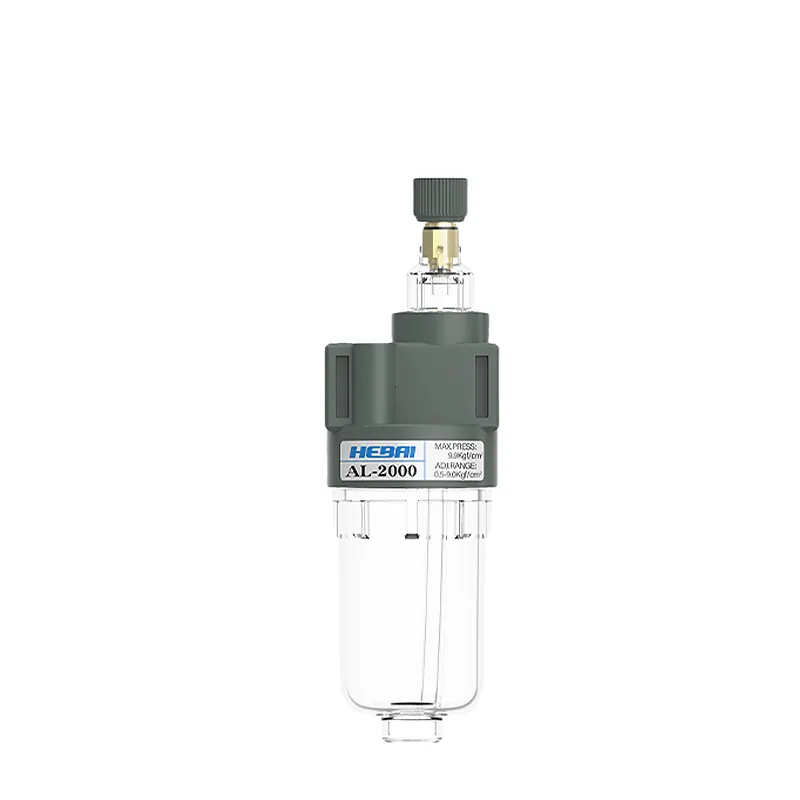

AL2000 / Grey

Model：AL2000 / Grey

Fluid：Air

Port size：1/4”

Pressure range：0.05~1.0MPa(7~145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-5~70℃(unfreeze)

Capacity of oil bowl：25CC

Recommended lubricant：Turbine 1 oil ISOVG32

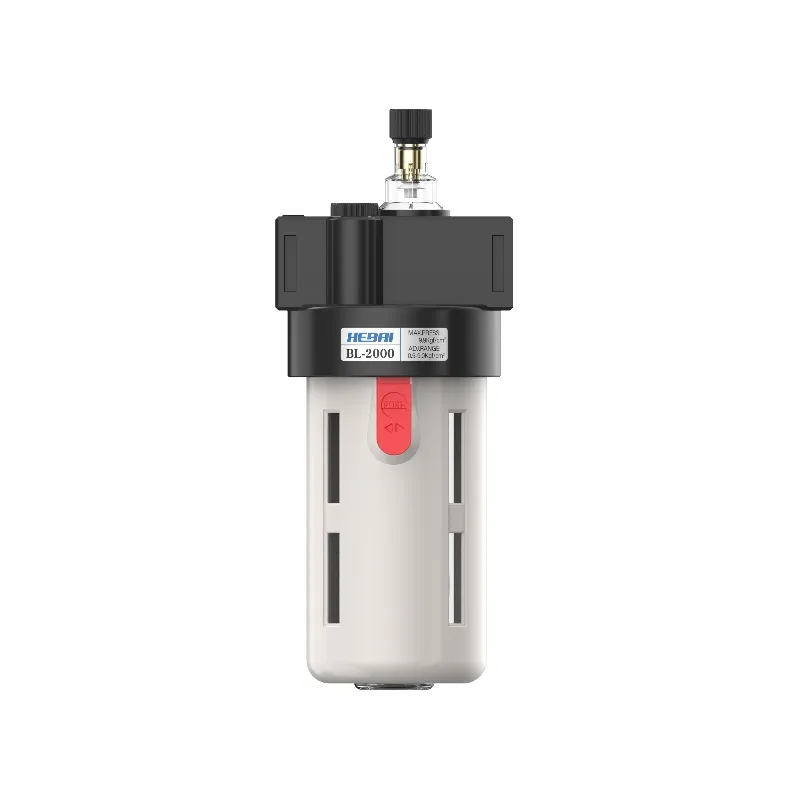

BL2000/Black/Plastic

Model：BL2000

Fluid：Air

Port size：1/4”

Pressure range：0.05~1.0MPa(7~145Psi)

Proof pressure： 1.5MPa(215Psi)

Temperature range： -5~70℃(unfreeze)

Capacity of oil bowl：25CC

Recommended lubricant：Turbine 1 oil ISOVG32

AL2000/ Black

Model: AL2000/ Black

Fluid: Air

Port size: 1/4”

Pressure range: 0.05~1.0MPa(7~145Psi)

Proof pressure: 1.5MPa(215Psi)

Temperature range: -5~70℃(unfreeze)

Capacity of oil bowl: 25CC

Recommended lubricant: Turbine 1 oil ISOVG32

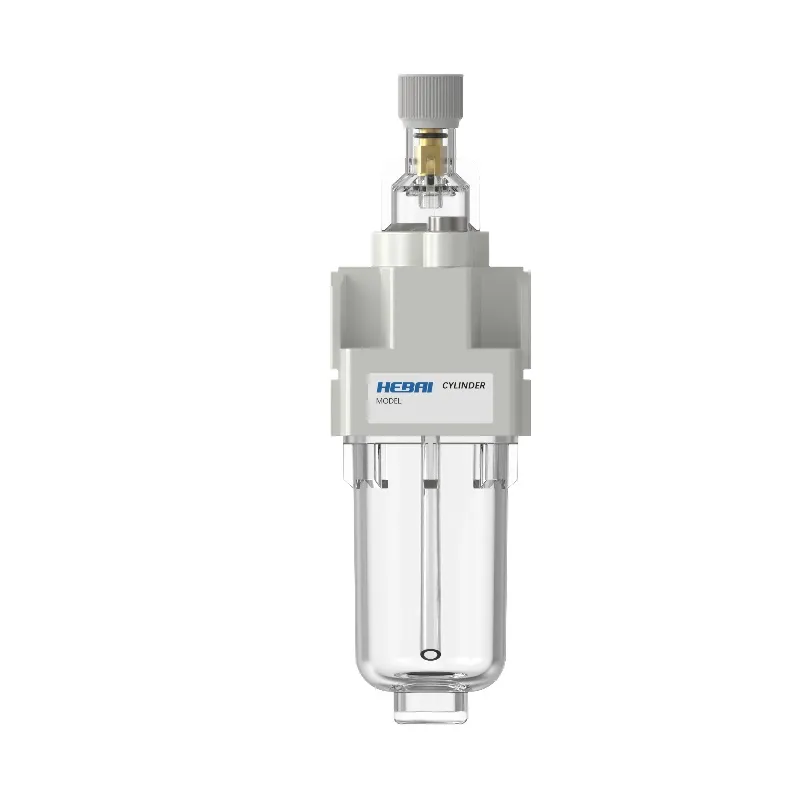

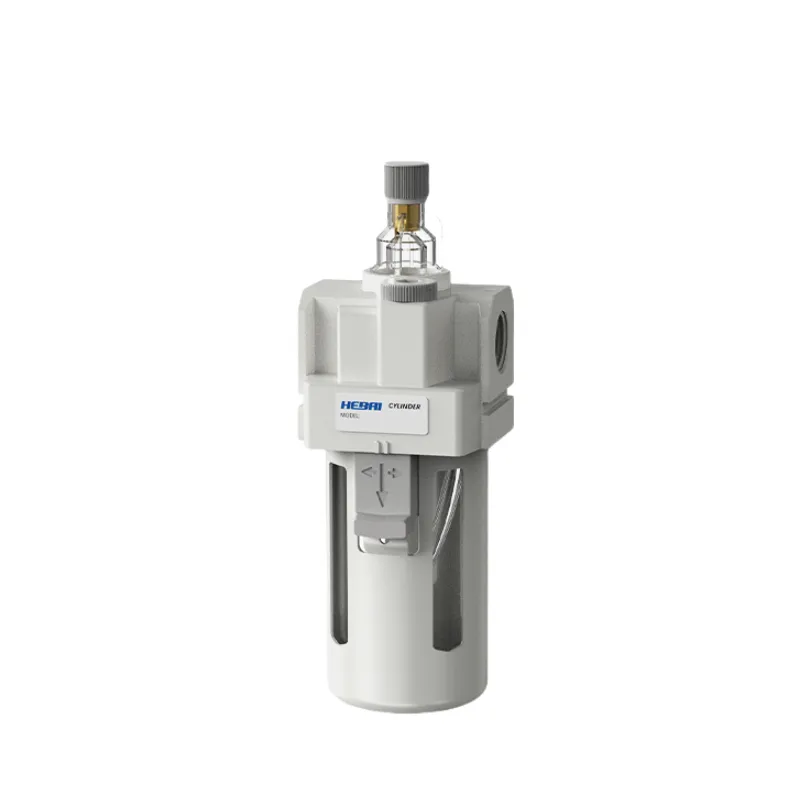

AL3000-03/ White

Model:AL3000-03/ White

Proof pressure: 1.5MPa(15kgf/cm²)

Max. operation pressure: 1.0MPa(10kgf/cm)

Ambient and fluid temperature: 5-60℃

It is recommended to use oil: Turbine 1 oil ISOVG32

Bowl material: Polycarbonate

Bowl guard:AL2000 (None) AL3000-5000 (Included)

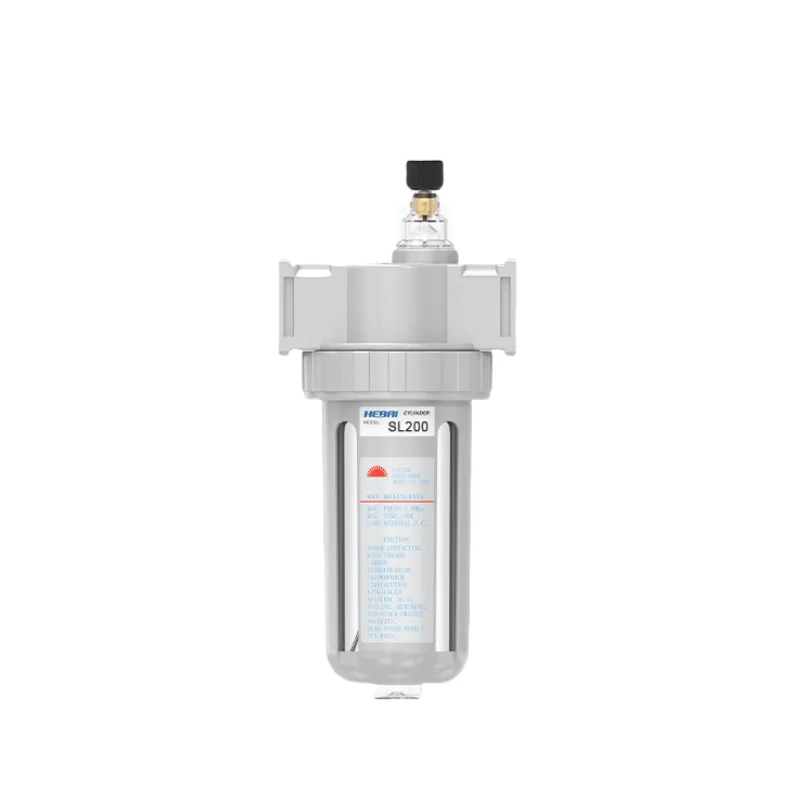

SL200 / SL300 / SL400

Model:SL-200/SL-300/SL-400

Port size: 1/4″/ 3/8″ / 1/2″

Working medium: Air

Proof pressure: 1.5Mpa(15.3kgf/cm)

Max.adjustable pressure:1.0Mpa(10.2kgf/cm)

Using temperaturerange: 5~60℃

Suggest lubrication oil:(ISOVG32) Turbine 1 oil

Body material:Aluminum alloy

Cup material: PC

AL2000-02 / White

Model: AL2000-02

Proof pressure:1.5MPa(15kgf/cm²)

Max. operation pressure: 1.0MPa(10kgf/cm)

Ambient and fluid temperature: 5-60℃

It is recommended to use oil:Turbine 1 oil ISOVG32

Bowl material: Polycarbonate

Bowl guard:AL2000 (None) AL3000-5000 (Included)

AW3000-03/Gold

Model:AW3000-03

Proof pressure: 1.5MPa(15kgf/cm²)

Max. operation pressure:1.0MPa(10kgf/cm²)

Ambient and fluid temperature:5~60℃

Filter accuracy:25μm

Bowl material:Polycarbonate

Bowl guard: A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)

Set pressure range: Set pressure range

Construction:Overflow type

AW2000-02 / Gold

BFR2000 / Grey / Metal Cover

Model：BFR-2000

Fluid：Air

Port size：1/4″

Filtering grade：40μm or 25μm

Pressure range： Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)

Manual drain:0.05~0.9MPa(7~130Psi)

Max. pressure：1.0MPa(145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-5~70℃(unfrooze)

AFR2000 / Copper Core / Gray

Model:AFR2000

Fluid:Air

Port size: 1/4″

Filtering grade: 40μm or 25μm

Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)

Manual drain:0.05~0.9MPa(7~130Psi)

Max. pressure: 1.0MPa(145Psi)

Proof pressure:1.5MPa(215Psi)

Temperature range:-5~70℃(unfrooze)

BFR-2000

Model:BFR-2000

Fluid:Air

Port size: 1/4″

Filtering grade: 40μm or 25μm

Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)

Manual drain:0.05~0.9MPa(7~130Psi)

Max. pressure:1.0MPa(145Psi)

Proof pressure: 1.5MPa(215Psi)

Temperature range: -5~70℃(unfrooze)

AFR2000 / Fibers Core / Black

Model: AFR-2000

Fluid: Air

Port size: 1/4″

Filtering grade: 40μm or 25μm

Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)

Max. pressure: 1.0MPa(145Psi)

Proof pressure:1.5MPa(215Psi)

Temperature range: -5~70℃(unfrooze)

AW2000-02

Proof pressure:1.5MPa(15kgf/cm²)

Max. operation pressure:1.0MPa(10kgf/cm²)

Ambient and fluid temperature:5~60℃

Filter accuracy:25μm

Bowl material:Polycarbonate

Bowl guard:A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)

Set pressure range:AW2000~5000:0.05~0.85MPa(0.5~8.5kgf/cm²)

Construction:Overflow type

AFR2000 / Copper Core /Black

Model：AFR2000

Fluid：Air

Port size：1/8″

Filtering grade：40μm or 25μm

Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)

Manual drain:0.05~0.9MPa(7~130Psi)

Max. pressure：1.0MPa(145Psi)

Proof pressure：1.5MPa(215Psi)

Temperature range：-5~70℃(unfrooze)

SFR200 / SFR300 / SFR400

Model:SFR-200/SFR-300/SFR-400

Port size: 1/4″ / 3/8″ / 1/2″

Working medium: Air

Proof pressure: 1.5Mpa{15.3kgf/cm²}

Max. adjustable pressure: 1.0Mpa(10.2kgf/ cm’}

Using temperature range: 5-60℃

Fiter spool precision: 40μm

Body material: Aluminum alloy

Cup material: PC

Filter Regulator Lubricators

Compressed Air Filters

Filter Regulator Lubricators

GFC-200/300/400

Filter Regulator Lubricators

Air Regulators

2000/3000/4000

Air Regulators

Air Lubricators

Air pressure regulating valve filter GFR2000 pressure regulating valve oil-water separation

Air Pressure Regulator, BFR-2000 Air Filter Regulator Filter Pressure Regulator, Pressure Gauge Air Pressure Gauge for Home

AW2000-02 Pneumatic Compressor Air Filter Source Treatment Filters Pressure Regulator Gauge Oil Separator

Light weight, small size, easy installation and maintenance

Model: AFR2000 (AFR is the model, 2000 refers to the port size)
Material: body (aluminum die-casting products), Yung cup (polycarbonate)
Fluid: Air
Port size: G1 / 4
Filtration precision: 5μm
Gauge caliber: G1 / 8
Treatment cup capacity: 15CM3
